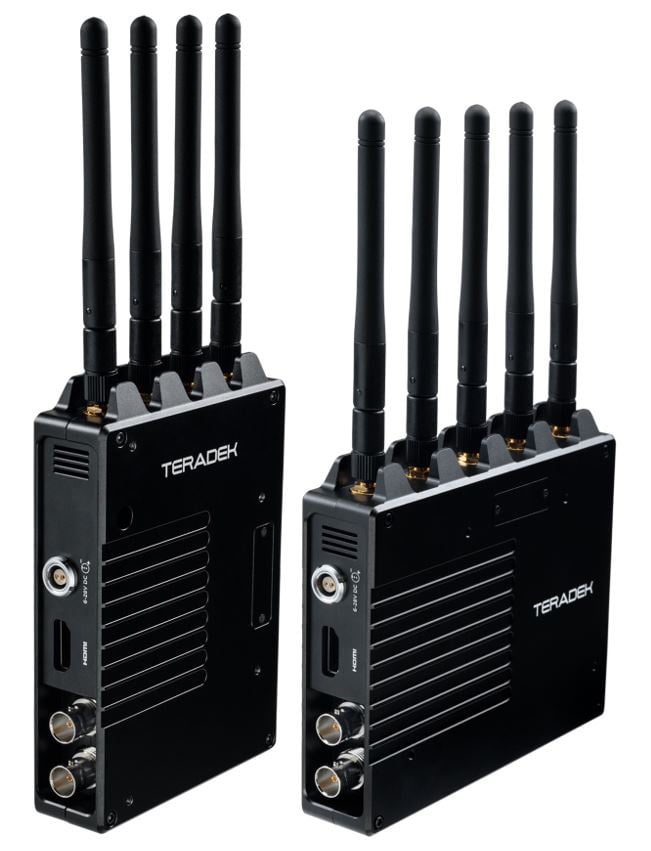

Smaller and lighter than the CW-5, these operate more like the Teradek Bolts, running off a D-Tap power supply, and supplying 1080p60 zero delay HD-SDI video up to approx 350ft line of sight.
Lightweight field monitor that's ideal for all types of filming. Can be connected to the vast majority of cameras, and provides a clear, bright image that is ideal for lighting and can even be used for focus pulling on 35mm censor cameras.
Protective Portabrace Field cover with sun hood and powered by mains supply or V-Lock Battery.
SDI input/output that switches between HD-SDI and SD-SDI, and is also capable of accepting a 3G HD-SDI signal. It supports composite video input/output, and features HDMI inputs.
Input
2 x BNC (2 HD/SD-SDI in)
1 x BNC (composite in)
1 x HDMI
Output
2 x BNC (HD/SD-SDI loop through out)
1 x HDMI (Converted to SDI output)
HDMI: 480I / 576I / 480P / 576P / 1080I50 / 1080I60 / 720P50 / 720P60 / 1080P24 / 1080P25/ 1080P30/ 1080P50 / 1080P60
Format
HDSDI (1.485Gbps): 1080I50 / 1080I60 / 720P50 / 720P60 / 1080P24 / 1080P25/ 1080P30
SDSDI (270Mbps): 576i / 480i
HDMI: 480I / 576I / 480P / 576P / 1080I50 / 1080I60 / 720P50 / 720P60 / 1080P24 / 1080P25/ 1080P30/ 1080P50 / 1080P60
Composite: PAL/NTSC/SECAM
Safe Area and Scale Marker
You can select the scale of safe area frame from 80%, 85%, 90% and 95% in the menu system. And under HD input, the monitor can display a center 4:3 marker, to help composition the image when using HD recording while SD broadcasting.
Audio Monitoring - Via 3.5mm headphone or Speaker
The monitor supports HDMI embedded audio (ch-1 and ch-2), and L&R analog audio output via 3.5mm headphone socket.
