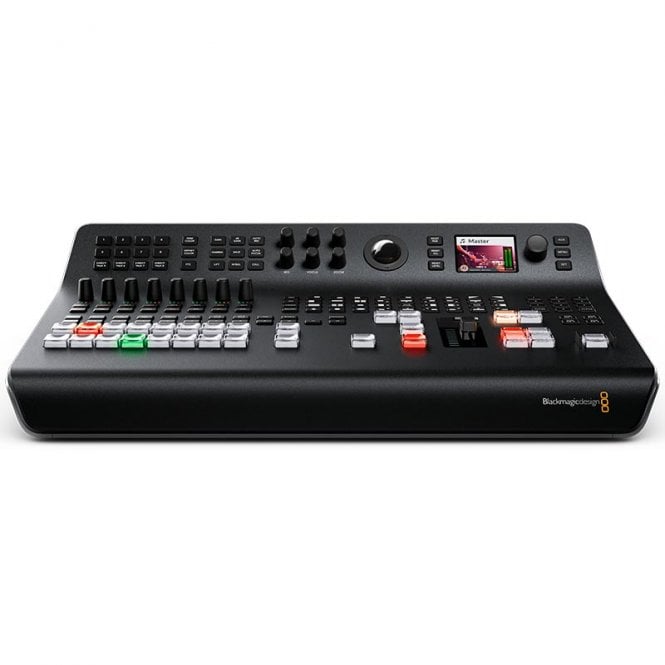

Blackmagic ATEM Television Studio Pro 4K

The Blackmagic ATEM Television Studio Pro 4K is very similar to the HD models but can now do Ultra HD and has 8 12G SDI inputs. It is capable of taking all the standard Ultra HD formats up to 2160p 60 with all 8 of the inputs running different formats at the same time. So if you are live streaming, broadcasting or recording a multi camera set up then this is for you.

This is one of the easiest video switchers to use and it is already getting very popular.

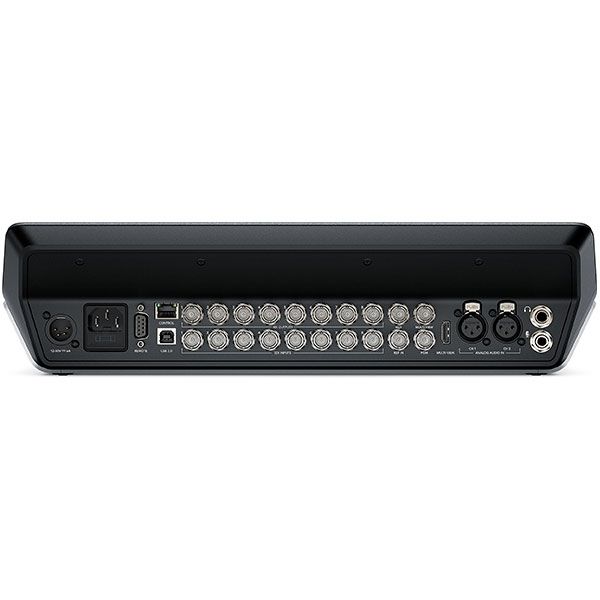

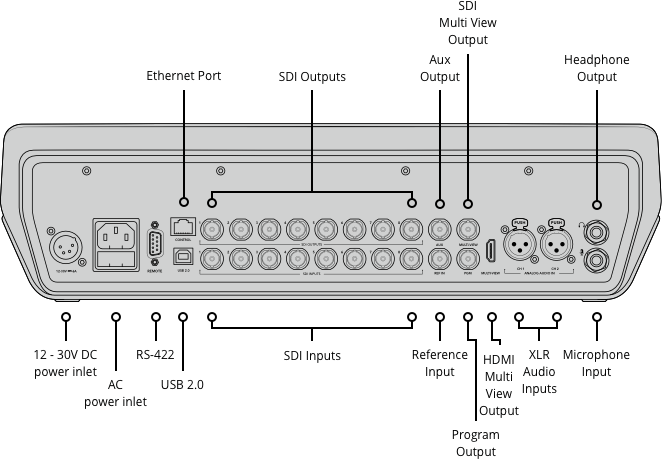

Connections

Total Video Inputs
8

Total Outputs
12

Total Aux Outputs
1

SDI Rates
1.5G, 3G, 6G, 12G.

Total Audio Inputs
2 x XLR. 1 x Microphone.

Total Audio Outputs
1 x Headphone.

SDI Video Inputs
8 x 10-bit HD/UHD switchable. 2 channel embedded audio.

HDMI Video Inputs
None – ask us about HDMI to SDI Converters if you need to connect up cameras which are HDMI only.  (we always recommend SDI where possible due to reliability)

Reference Inputs
Tri-Sync or Black Burst.

Video Input Re‑Sync
On all 8 inputs.

Frame rate and format convertors
On all 8 inputs.

SDI Program Outputs
9 x 10-bit HD/UHD switchable.

SDI Audio Outputs
2 Ch embedded into SDI output.

Total Multi Views
1

SDI Multi View Outputs
1

HDMI Multi View Outputs
1
